SPECIFICATIONS

Application: Household Tool Set

Brand Name: LTOOLS

Choice: yes

DIY Supplies: Woodworking

Department: Unisex-adult

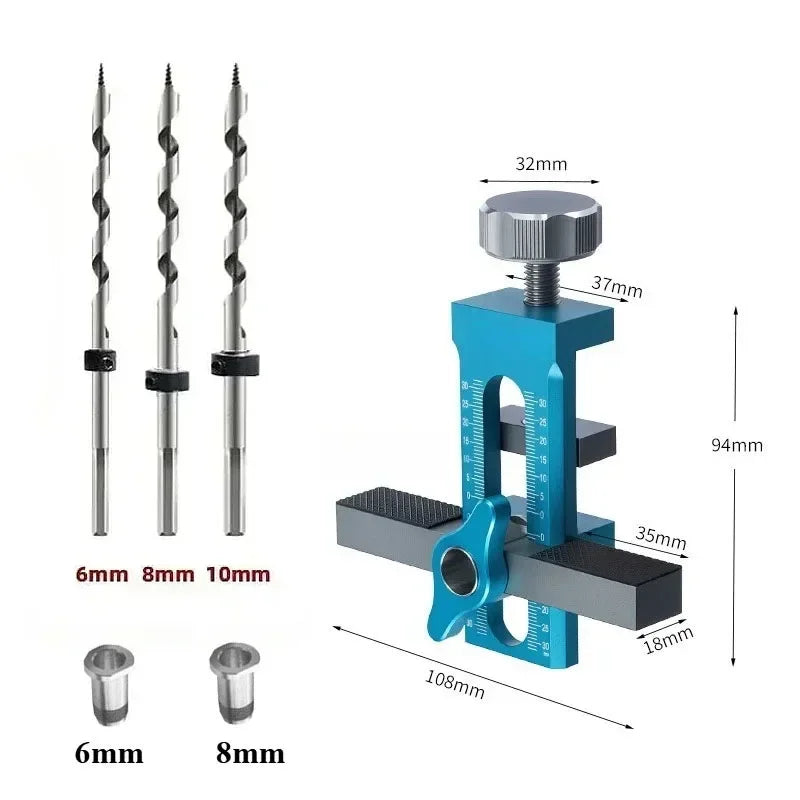

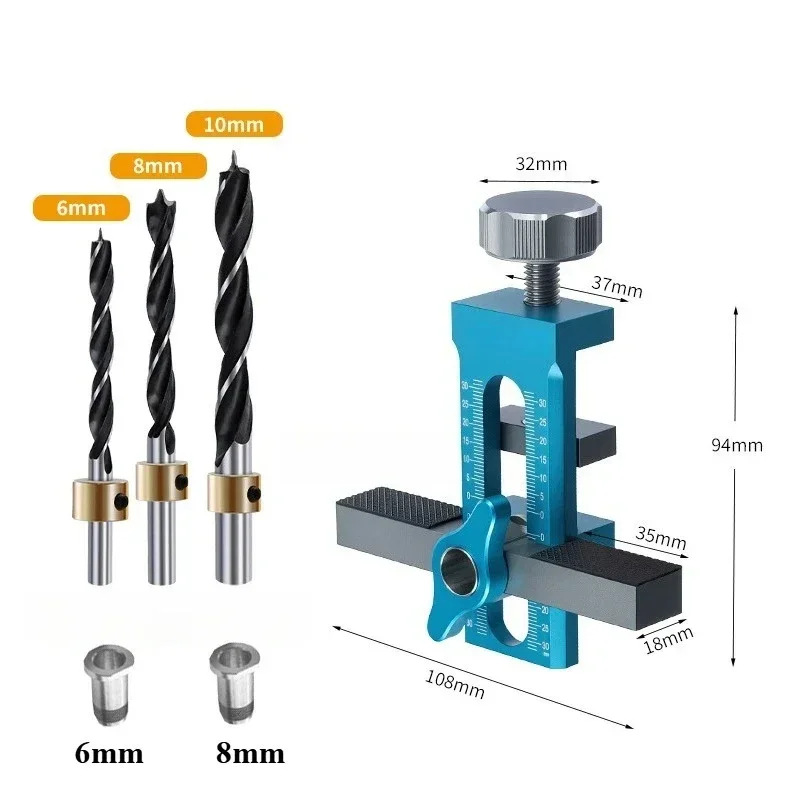

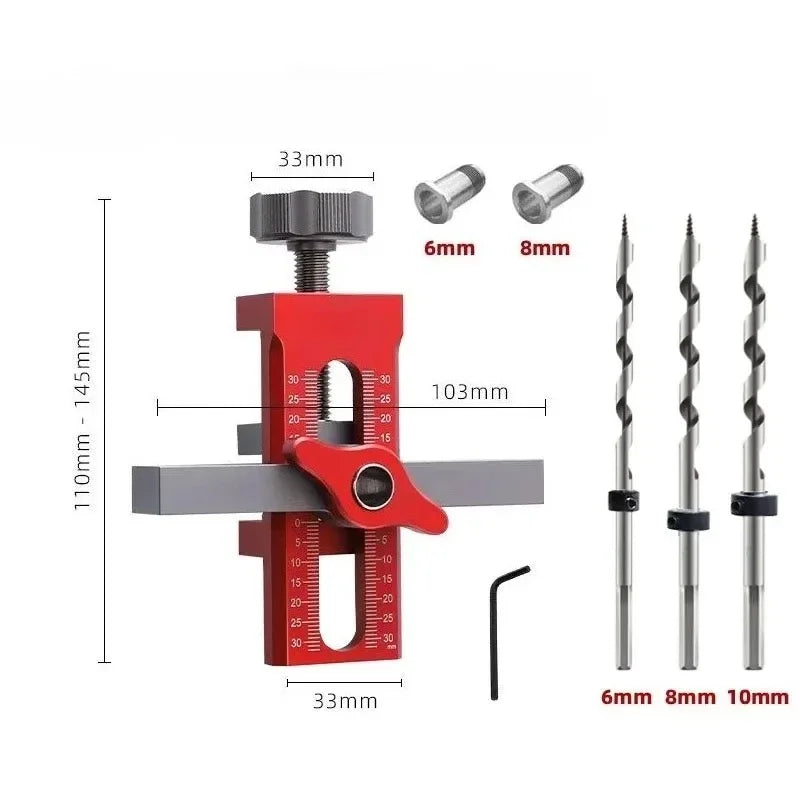

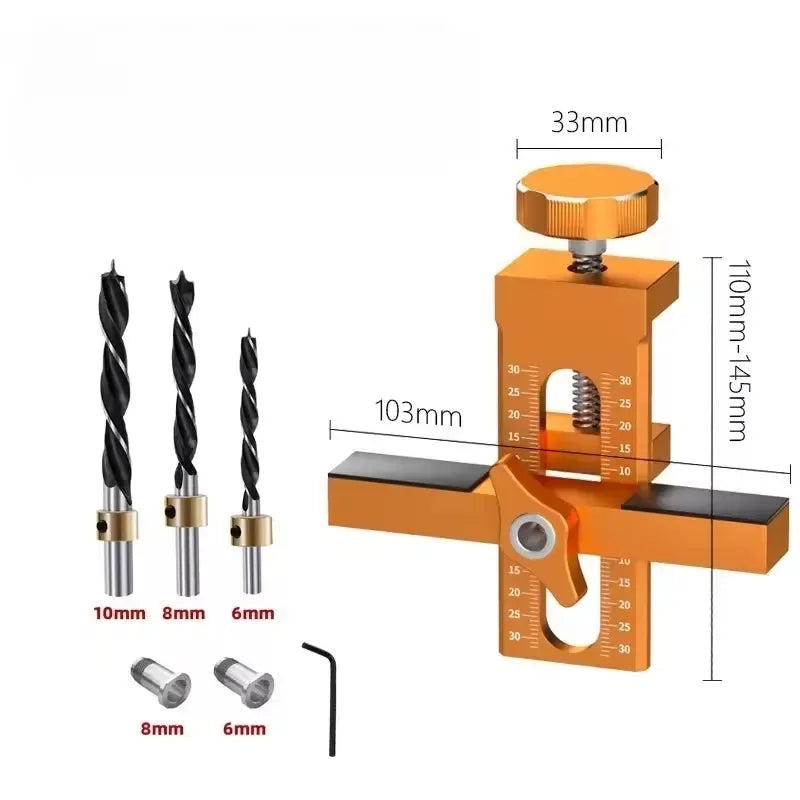

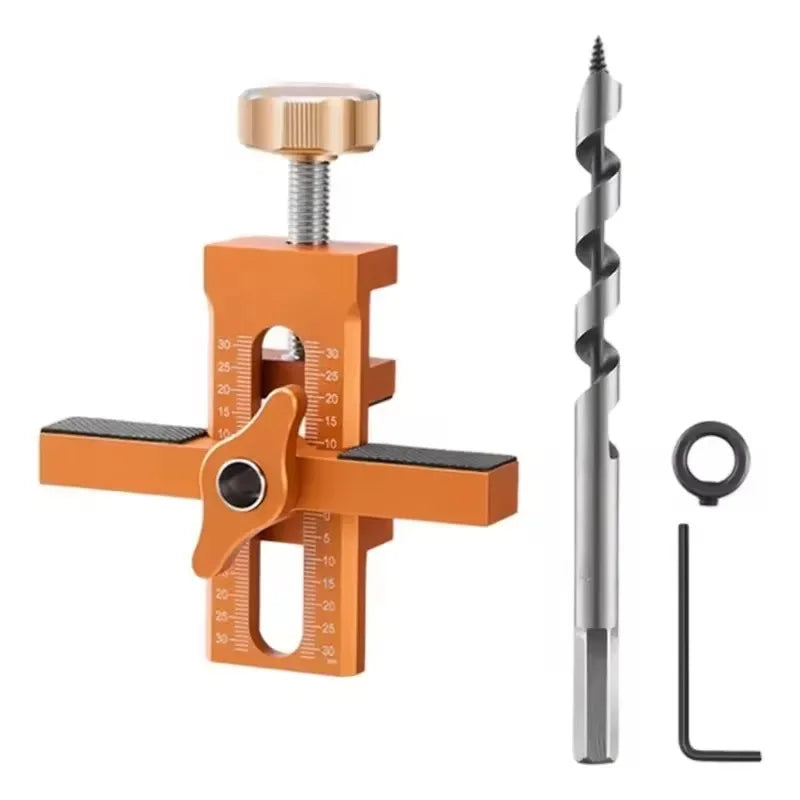

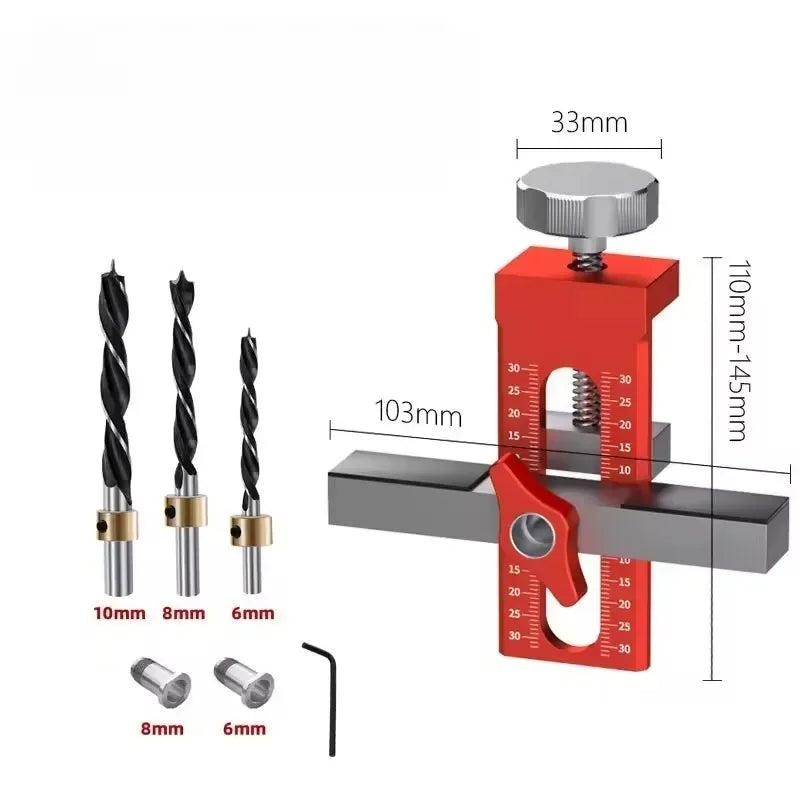

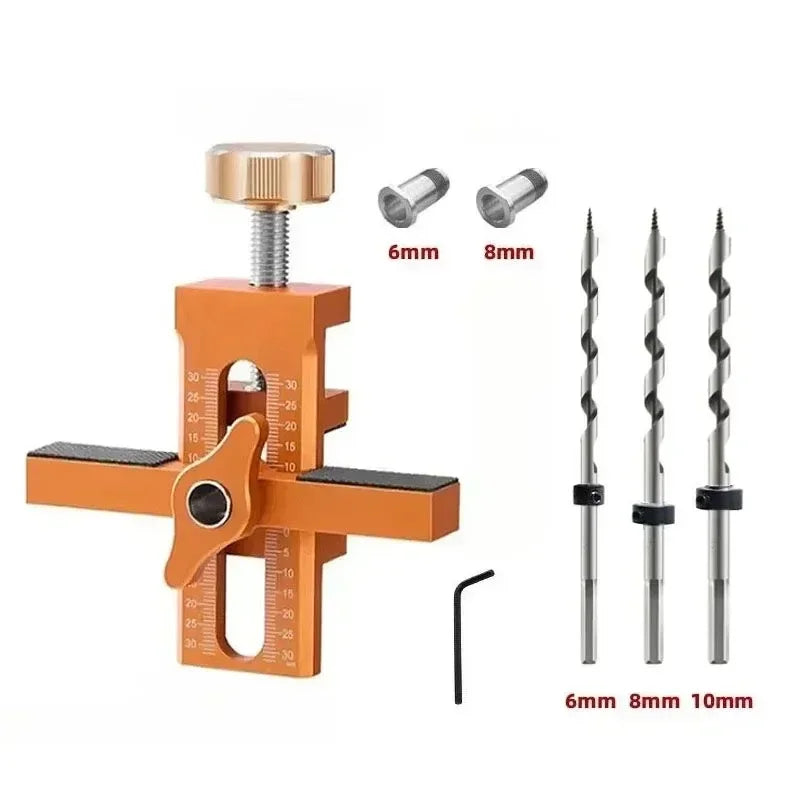

Drill Bit Specifications: 6/8/10mm

High-concerned chemical: none

Material: Metal

Model Number: Cabinet Door Quick Leveling Device

Origin: Mainland China

Package: Case

Pattern: Others

Product name: Cabinet Door Panel Mounting Jig

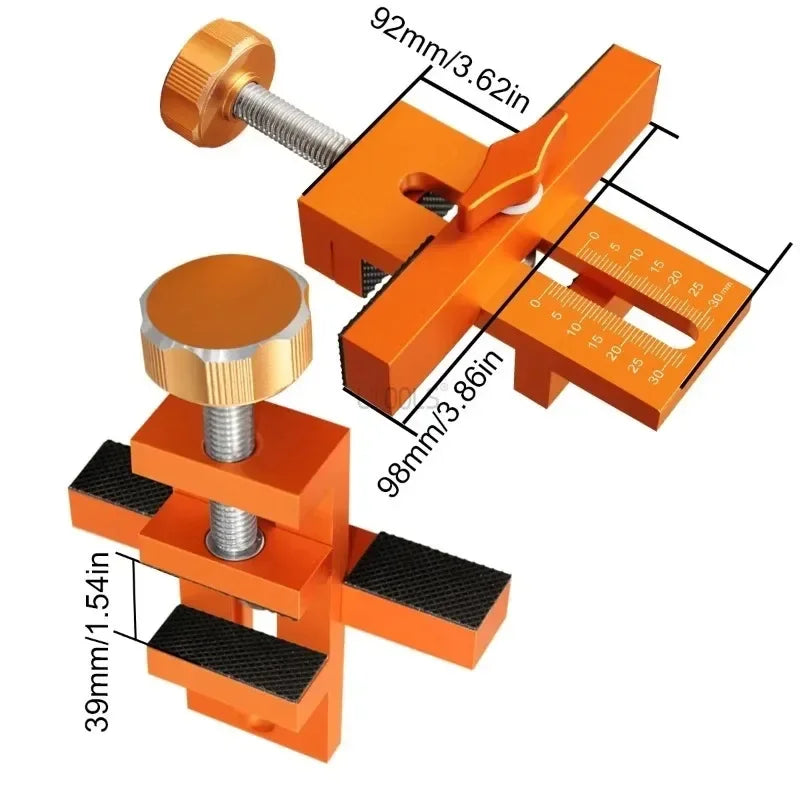

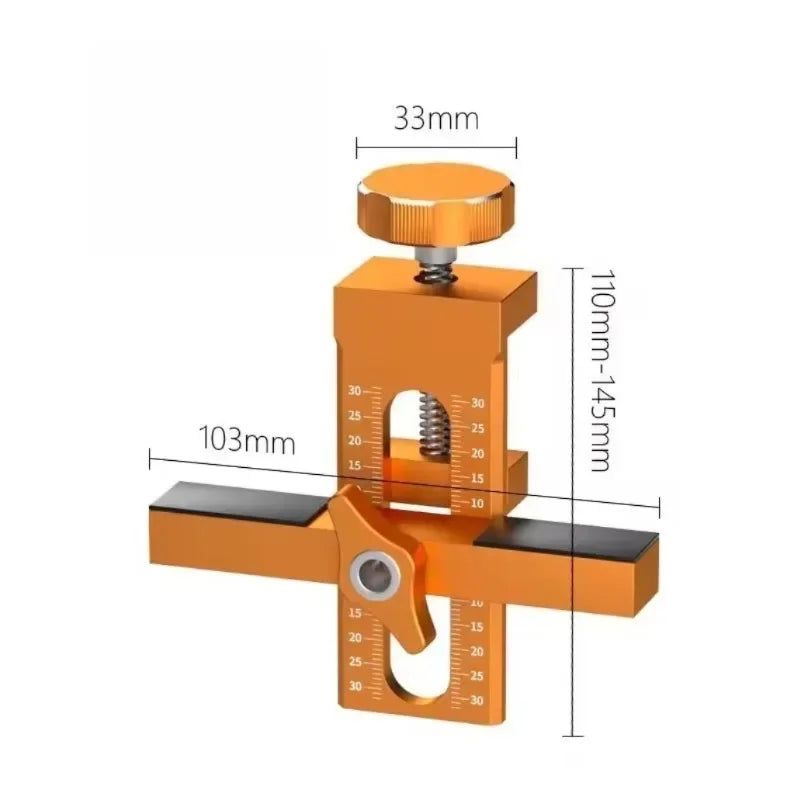

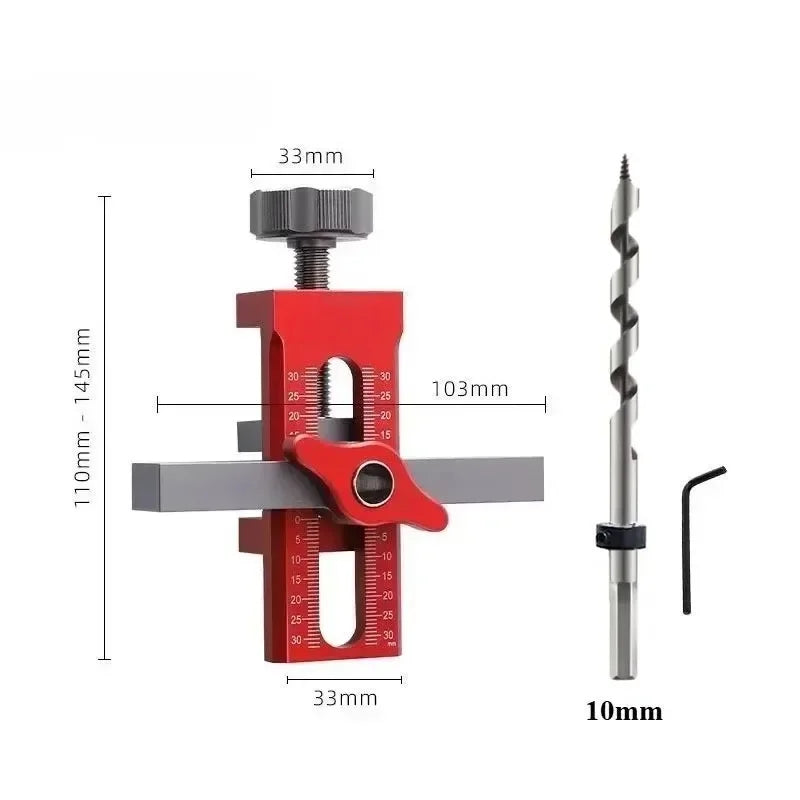

Size: as shown

Type: Combination

clamping range: 7-40mm

design: double side scale non slip pad screw locking structure

function: vertical hole drilling depth control positioning

is_customized: No

purpose: Rebound device punching/cabinet door installation

semi_Choice: yes

total adjustment range: 0-55mm

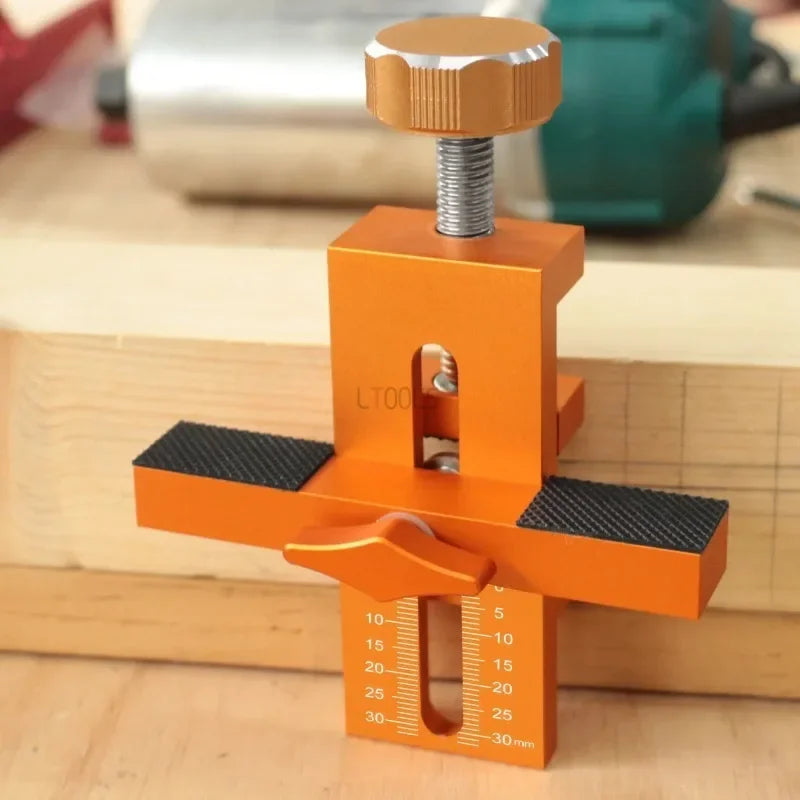

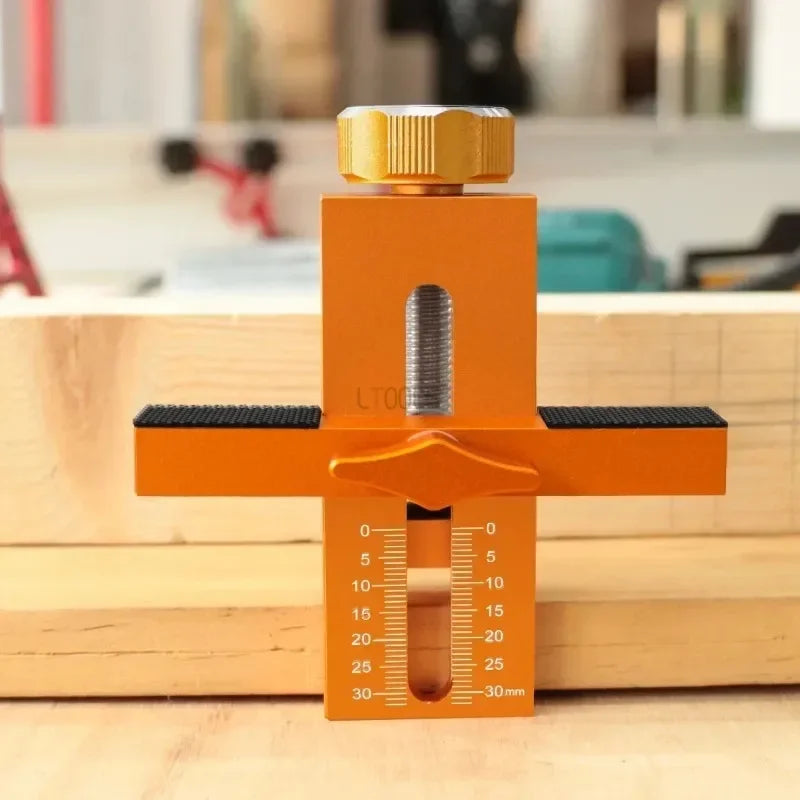

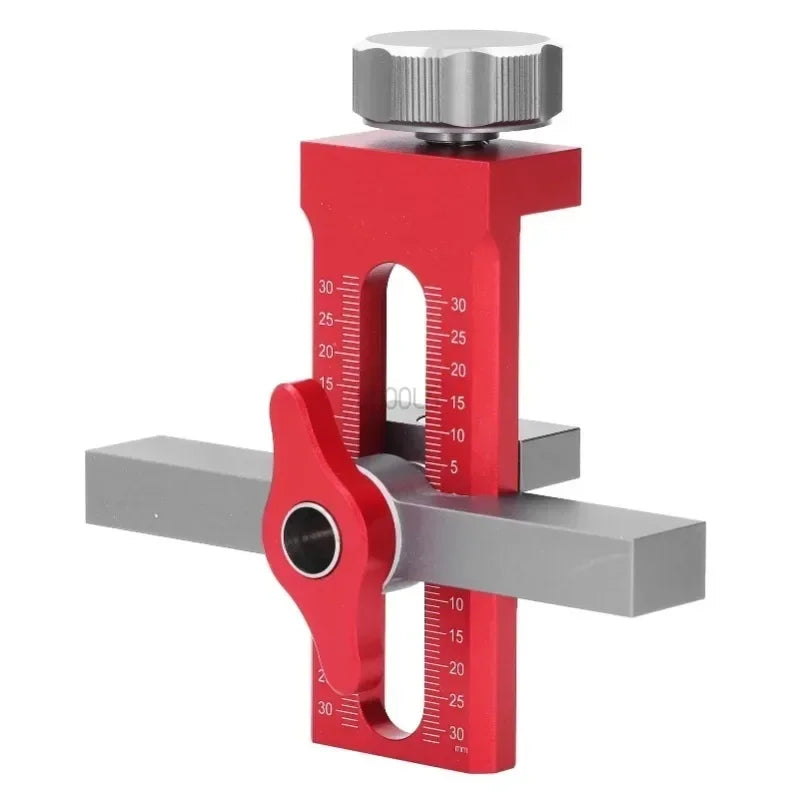

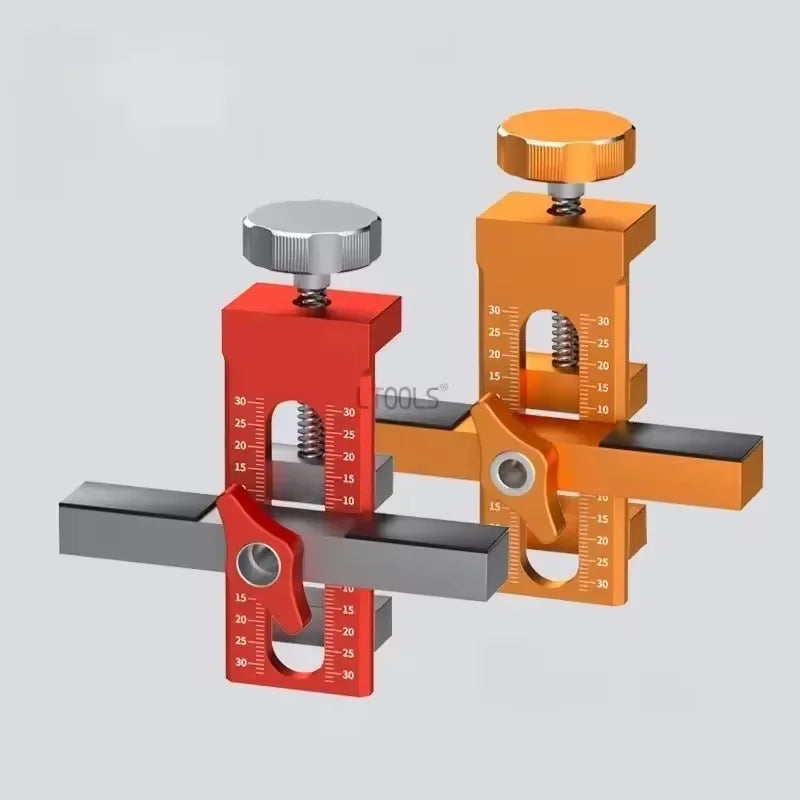

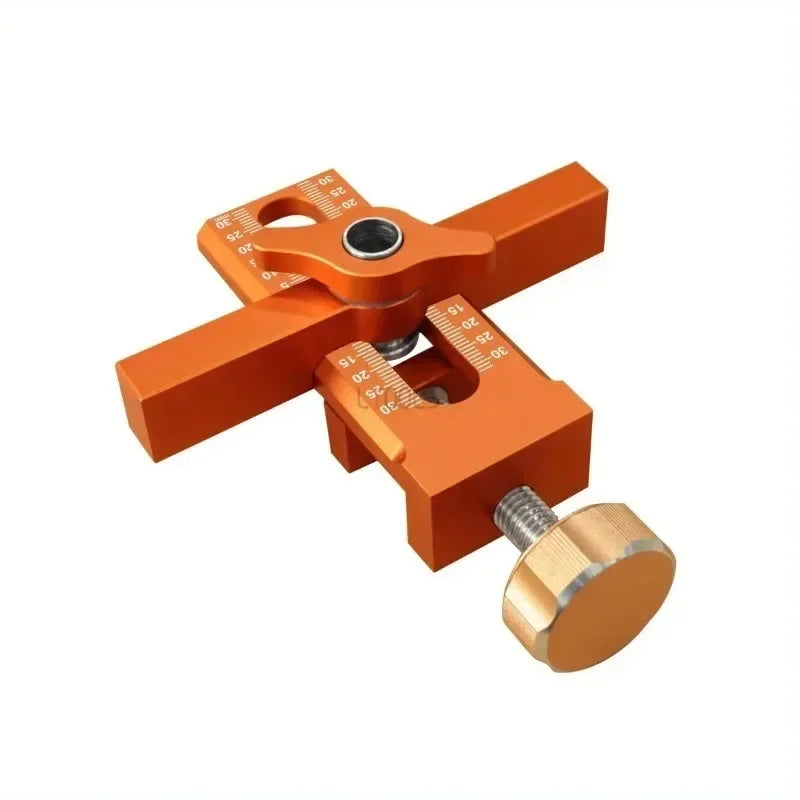

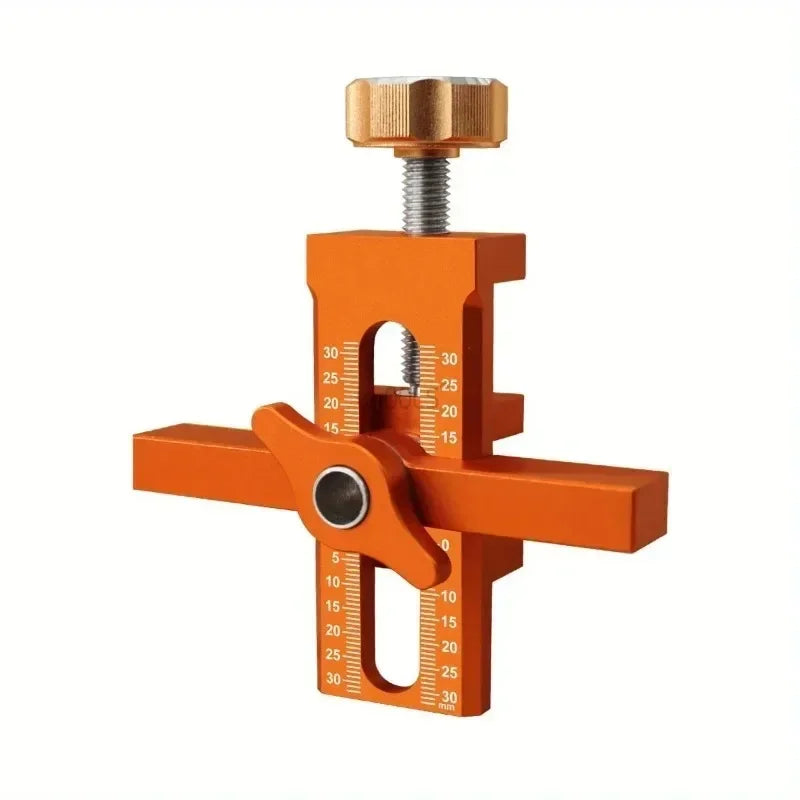

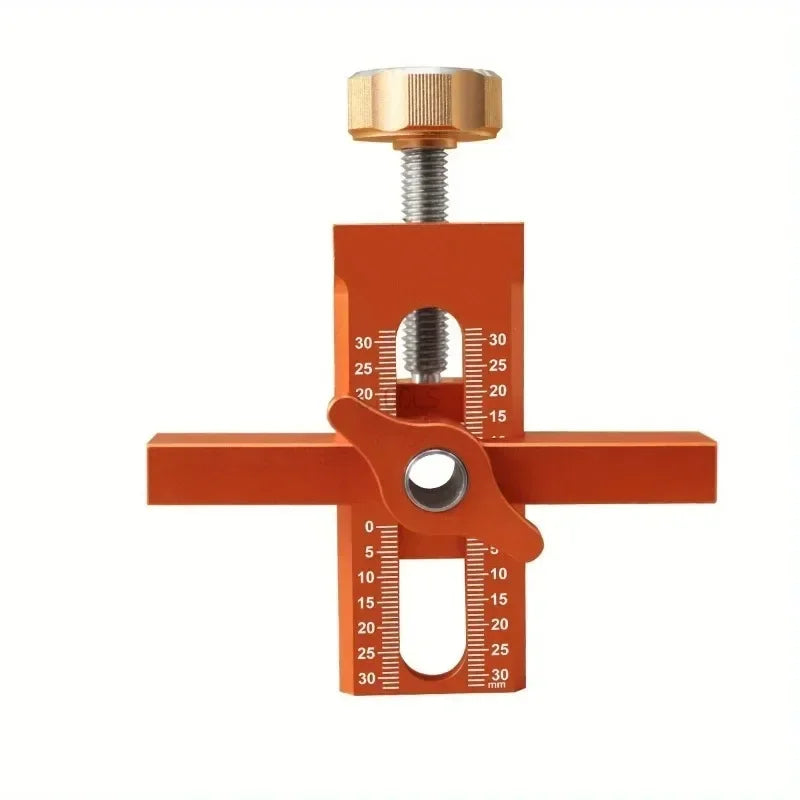

Cabinet Frontpanel Mounting Alignment Device Door Panel Lifted Leveling Installation Jig Furniture Connector Drilling Locator

Features:

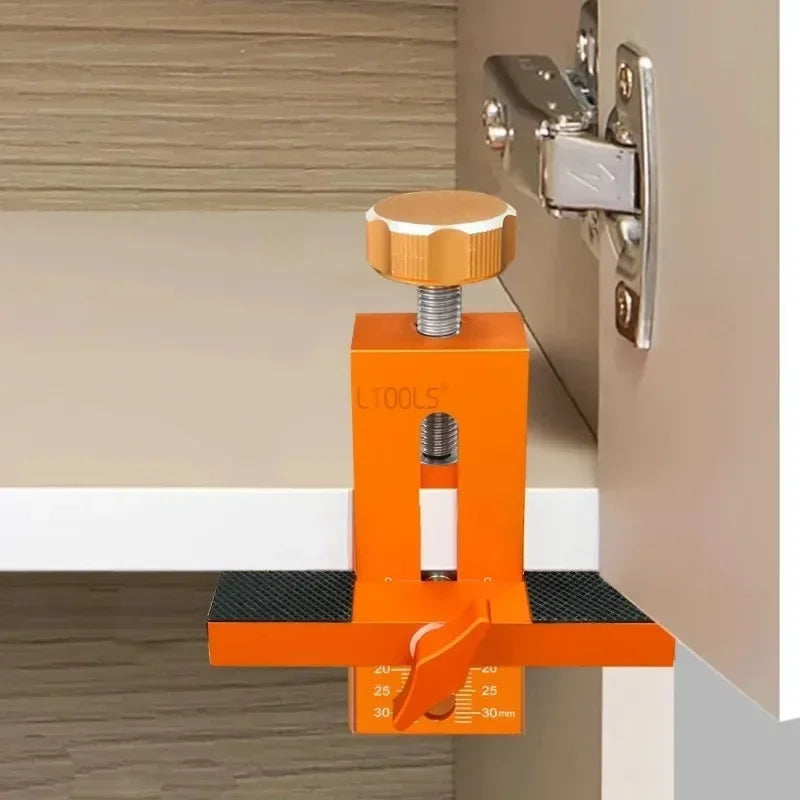

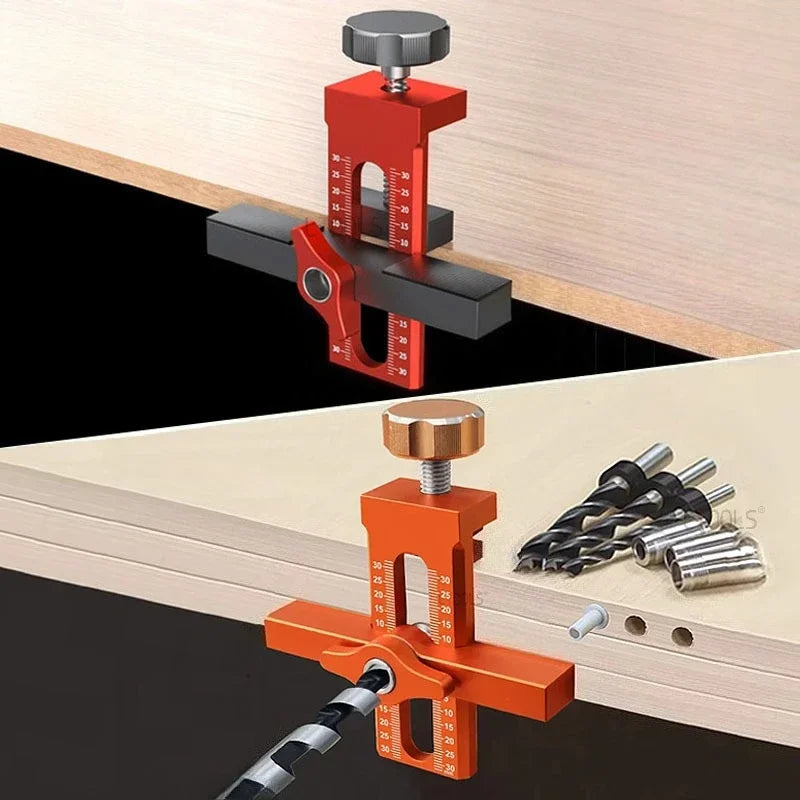

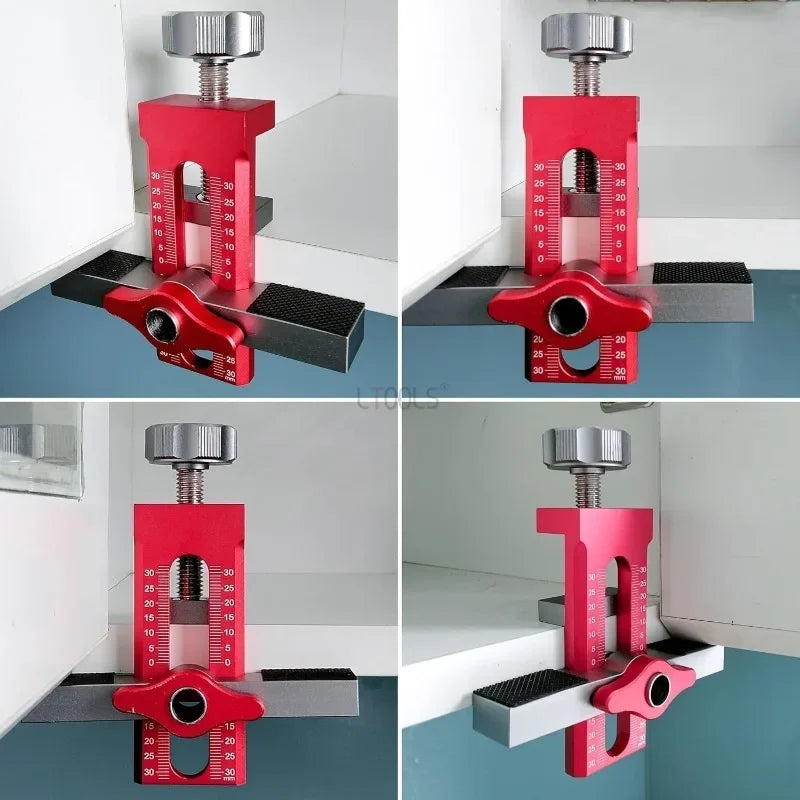

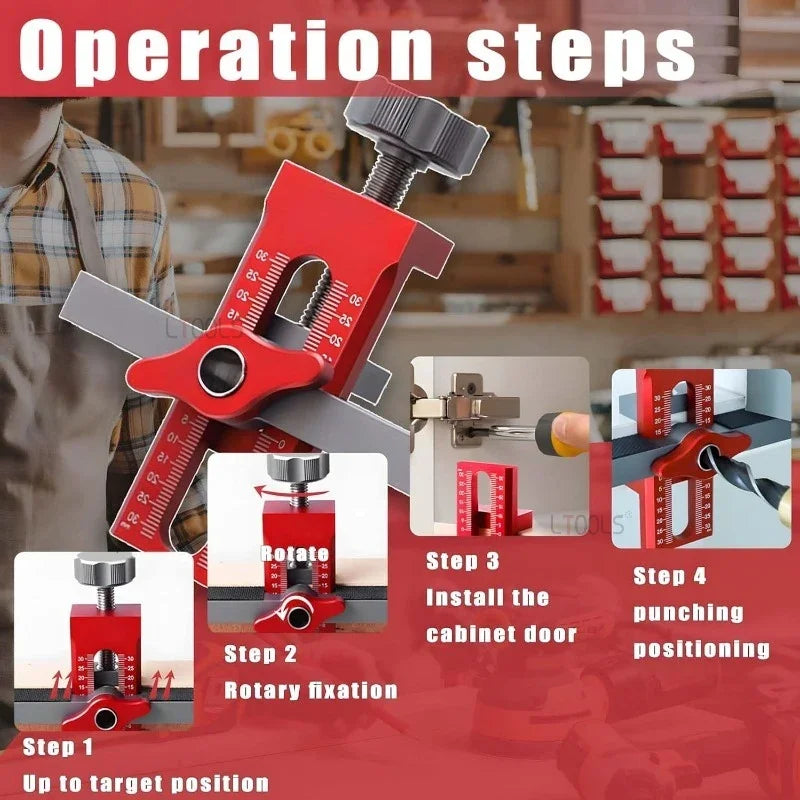

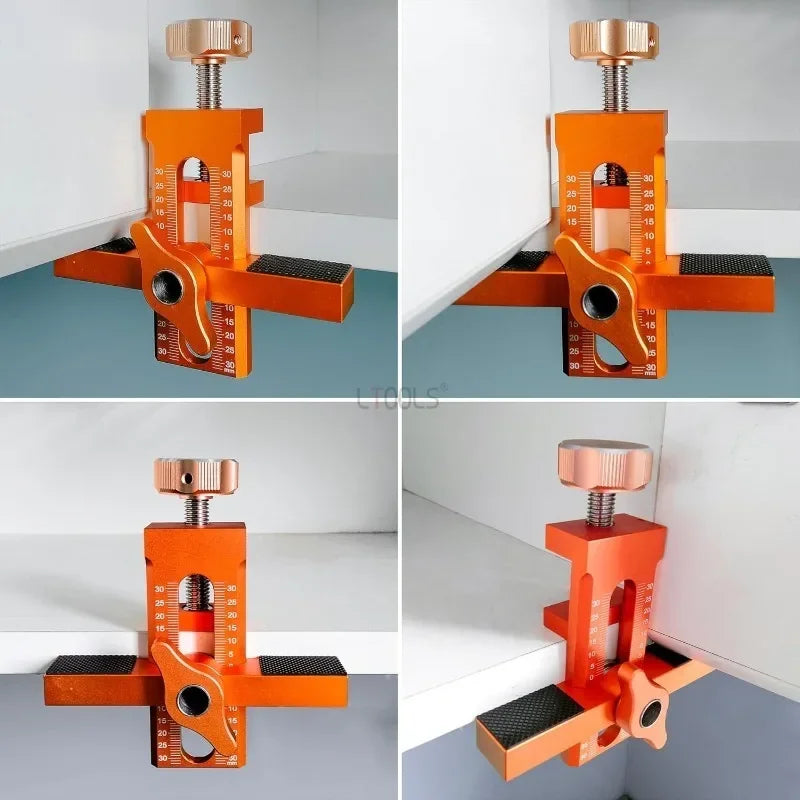

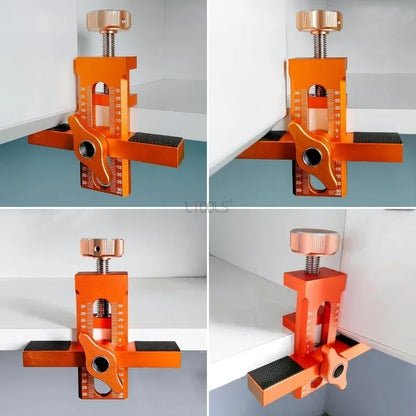

Cabinet door installation assistant/push-latch installation punch

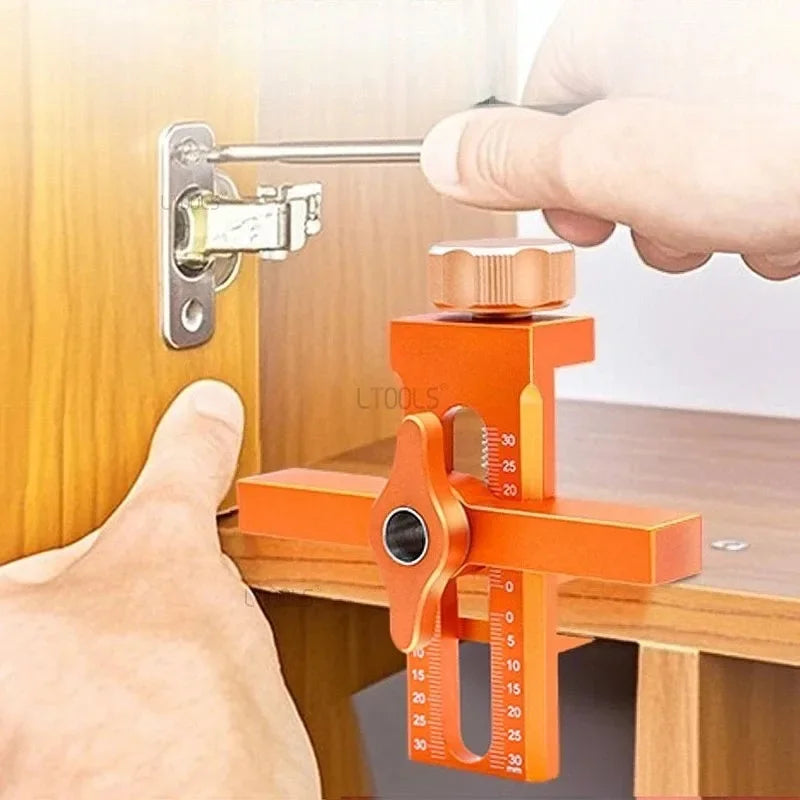

For installing cabinet door panels:
Single layer can be hung for 20 mm.
Maximum clamping of double layer is 40mm.
Simultaneously accounts for the punching of the push-latch

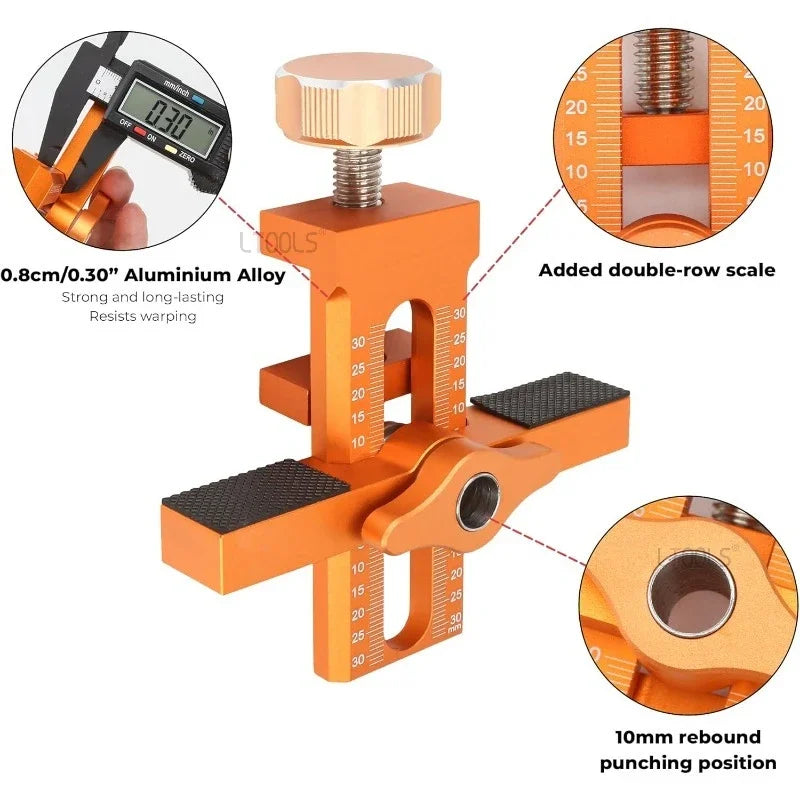

Bidirectional scale, both positive and negative sides can be used to meet the installation needs of different spaces
The cabinet door can be adjusted up and down by 0-55mm

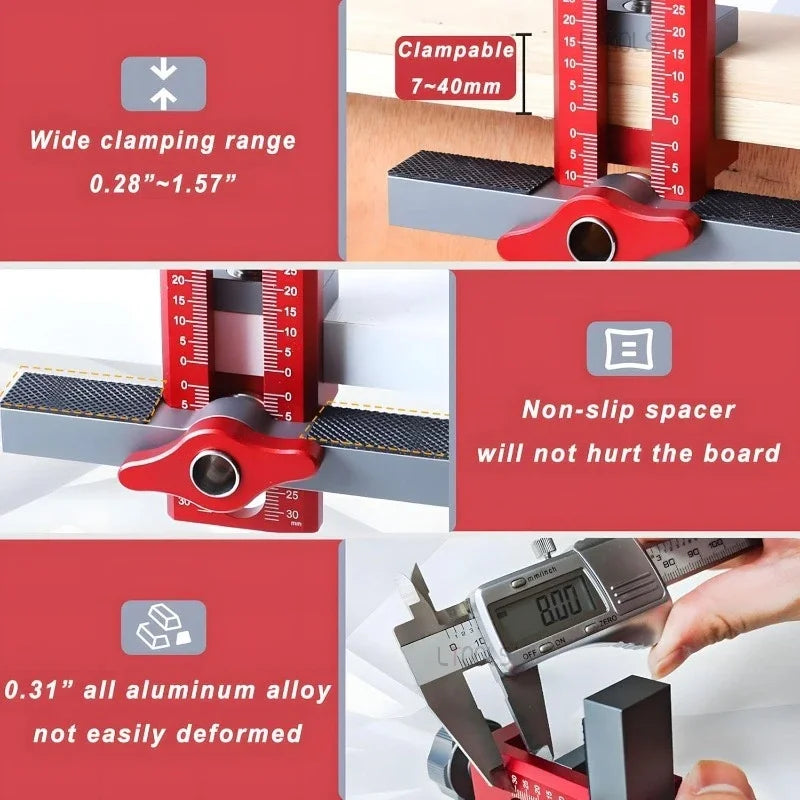

Can clamp 7-40mm, meeting the installation needs of the vast majority of carpenters
Accurately aim at the scale and grasp the height requirements precisely
8mm all-aluminum alloy, sturdy and not easily deformed
Comes with non-slip pads, safe and stable, does not damage the board

Description:
Product Name: Cabinet Panel Installation Clip
Material: Aluminum alloy

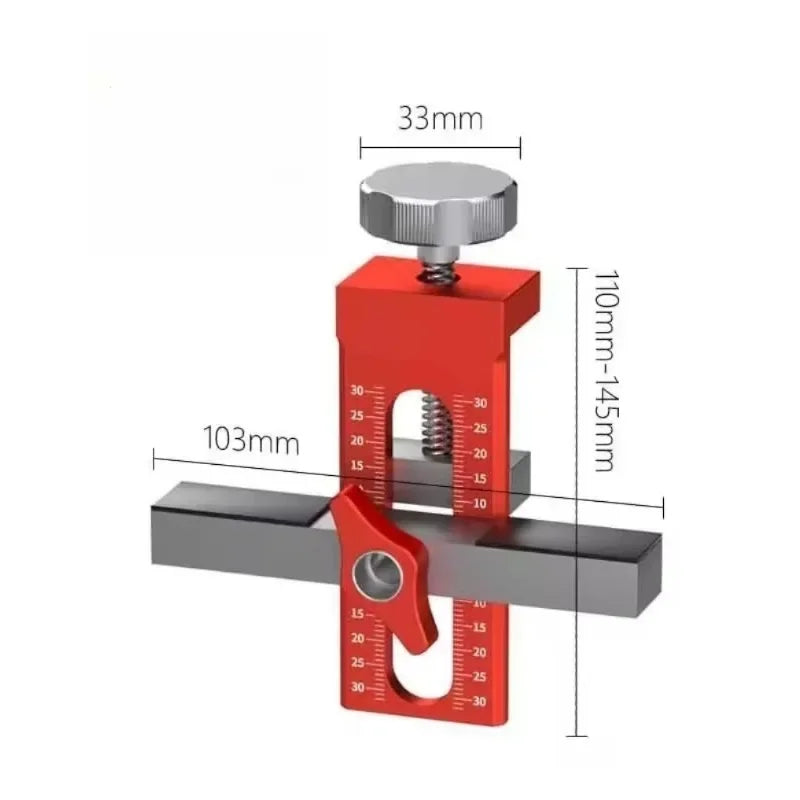

Size: as shown
Purpose: Used for cabinet panel installation, while also accounting for the installation of push-latch holes

Notes:
1. Manual measurement, please allow 1-3mm error, thank you.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the picture.
3. Due to long-distance shipping, the item may be damaged in transit. If the item is damaged, please contact us immediately before leaving feedback. Thanks for your understanding.
